2015 retrofit street light replaced E40 metal street light
Features of lighting columus
● Light source: Cree LED
● Low power consumption
● High luminosity and long life time
● Environmentally friendly
● Excellent opto-electronic performance
● High-efficiency cooling system
● Meanwell Driver, PF>0.98
Specification of lighting columus
| Parameter | Description |
| Model | LD-B80A |
| Power | 80W |
| Input Voltage | AC100~277V 50/60Hz |
| Light Efficiency | >95Lm/W |
| IP Rating | IP65 |
| Material | Aluminum |
| Power Factor | >0.98 |
| Total harmonic index | >20% |
| Flux | 7600LM |
| LED lifetime | >50000H |
| Operation temperature | -30℃~+50℃ |
| Color Temperature | Warm light/Day light/Pure light/ Cold light |
| Driver | HLG Meanwell |
| Beam Color | Typical 5500K |
| Color Rendering Index | Typical 75 |
| Package | 680*400*140mm |

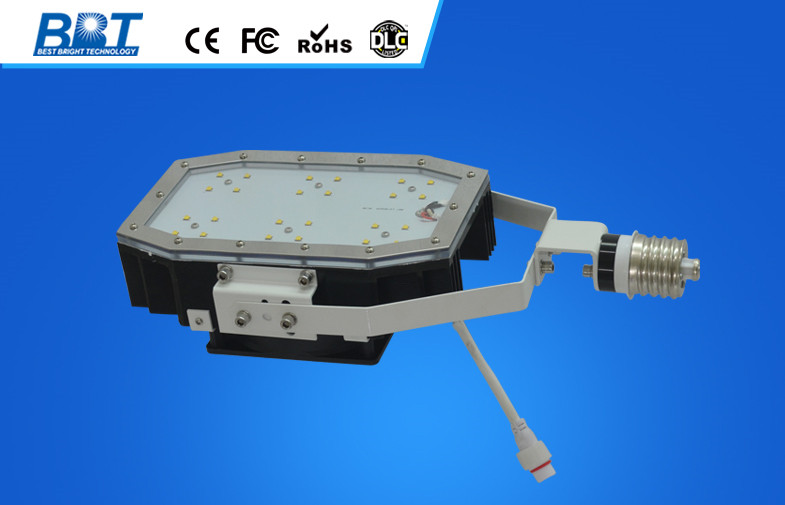

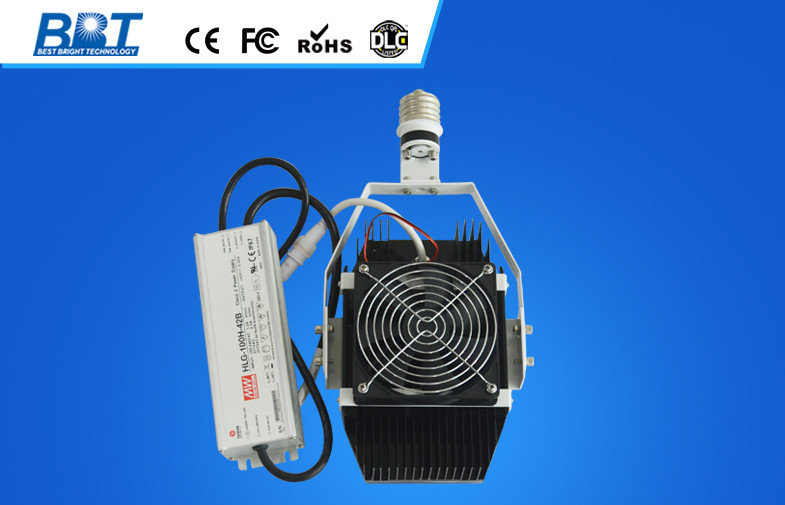

Photos of lighting columns
Advantages of lighting columus
Impression drawing of lighting columns
It can replace 250W metal lights
Lighting columus series
| Product Code | LD-B80A | LD-B100A | LD-B120A | LD-B150A |
| Wattage(W) | 80 | 100 | 120 | 150 |
| IP Rating | IP65 | IP65 | IP65 | IP65 |
| Luminous Output | 8000 | 10000 | 12000 | 15000 |
| Lumens Per Watt | 100Lm/W | 100Lm/W | 100Lm/W | 100Lm/W |
| Life span | 50000 | 50000 | 50000 | 50000 |
| Colour Temp | 3000-6500K | 3000-6500K | 3000-6500K | 3000-6500K |
| CRI | >75 | >75 | >75 | >75 |
| Input Voltage | 100-277V 50Hz/60Hz | 100-277V 50Hz/60Hz | 100-277V 50Hz/60Hz | 100-277V 50Hz/60Hz |
| Working Temp | -30℃~+50℃ | -30℃~+50℃ | -30℃~+50℃ | -30℃~+50℃ |

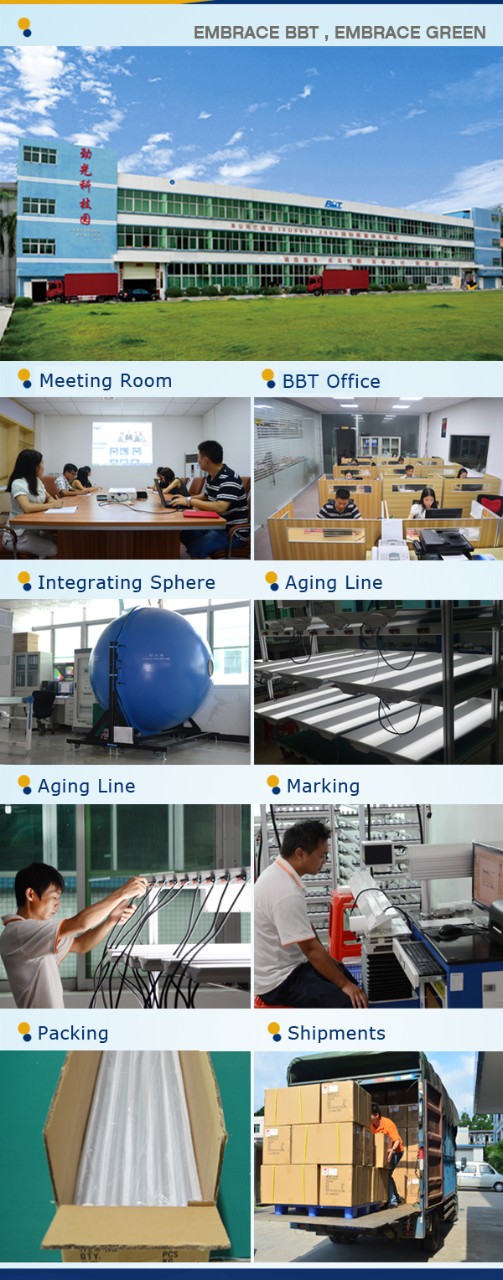

BBT Show
BBT has professional testing equipments, ensure high quality.
BBT has attanded HK Light Fair
BBT has many certification,BBT lights has good quality.
Lighting columus shipment
1. By Express: such as DHL, UPS, TNT, FEDEX etc. The dispatch time is about 3-5
days
2. Air Freight: when your order more than 100kgs which will be more economical tha
n express
3. Sea Freight: we will update sea freight once we know your sea port where goods
will be delivered
4. Agent designated by client: please tell us the contact detail of your shipping agent
and we will arrange to deliver the items
If you want to know the shipping cost, pls tell us your address and quantity.
EMBRACE BBT , EMBRACE GREEN .
|
|
2015 retrofit street light replaced E40 metal street light Images
|
